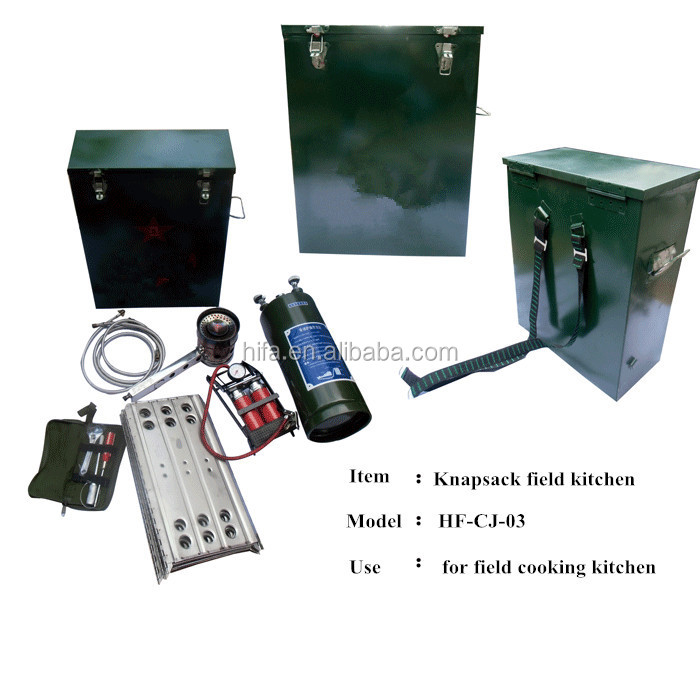

Knapsack style field mobile kitchen equipment

FOB Reference Price:Get Latest Price
$750.00 - $800.00 / Sets | 20 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 20 >20
Est. Time(days) 35 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China
Brand Name:
Catchin
Model Number:
HF-CJ-03
use:
outdoor cooking,field cooking
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
carton
Port
XIAMEN
Lead Time :
Quantity(Sets) 1 - 20 >20
Est. Time(days) 35 To be negotiated

Product Description



military stove field mobile stove trailer accessiary
-for military  field cooking
-for camping cooking
-serve 30-50 people



Each set to contain;

2 (two) x diesl cooking burners using vapourised diesl fuel as the heat source.

The burners must be able to fit into a Mobil Field Trailer Kitchen similar to the

MFK250. Be not more than 15.cm high, 40cm long, 22cm wide. The burner head

is expected to have a diameter of 15cm. The burner should have a telescopic

handle of at least 16cm.

The output is to be a min of 8kw per burner, with an expected operating time of

4hours between fills.

They are to be complete with fuel lighting wick and a pricker for the fuel jet. T

hese should be attached to the burner for easy access and storage during operations.

4 x Armoured removable fuel lines 1m each in length.

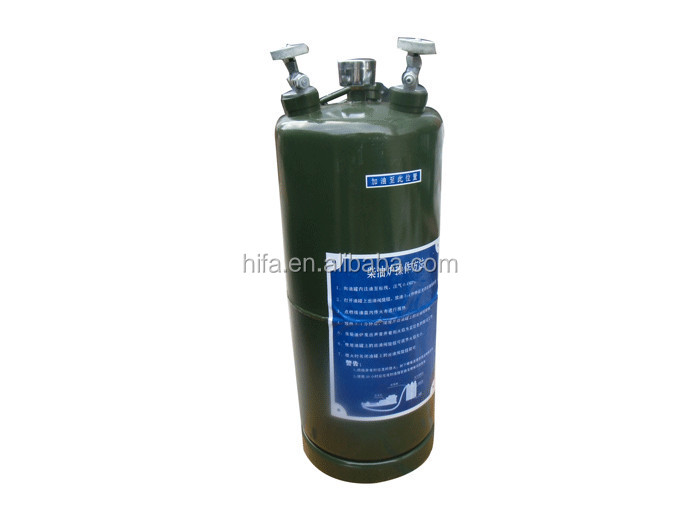

1 x fuel tank with a capacity of 8 to 11lts. And a working pressure of 0.1 – 0.4Mps.

       The tank is to have;

  • 2 (two) fuel outlet valves.
  • 1 air intake valve
  • 1 air release valve
  • 1 pressure gauge.

Air Pump.

1 x air pump to pressurize the fuel tank.

This should be a stirrup type pump capable of producing 6Mps minimum of pressure.

The cylinder should be made of heavy duty polycarbonate or metal with a diameter of

4mm with a 2mm piston also made from heavy duty polycarbonate or metal.

The piston guide at the top of the cylinder should prevent any lateral movement of the

piston while pumping air.

4 assorted nozzle/adapters for air intake valves to include a bicycle clip on style.

Spares;

Each set it to have 2 (two) vapourising coils in addition to the one in each burner.

2 (two) complete sets of all washers, pressure springs and gaskets.

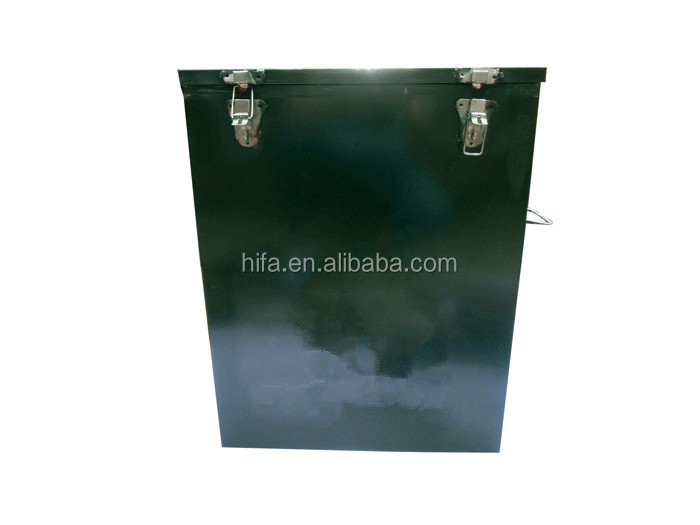

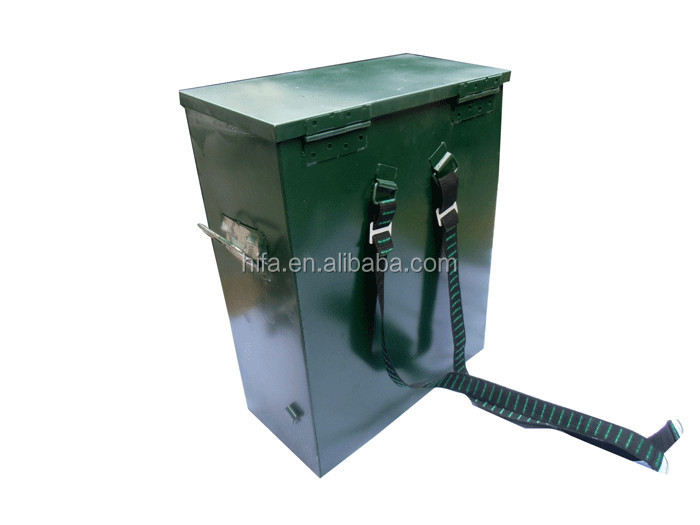

1  Knapsack style for stroge all equipment
